Specs Specs
Brochure Brochure
Cutting Width
Cutting Width 1.50m - 1.80m
Tractor
Min. Power 15HP
PTO
PTO 540 rpm
Min. Weight
Min. Weight 189kg
Cutting Height
Cutting Height 25-100mm

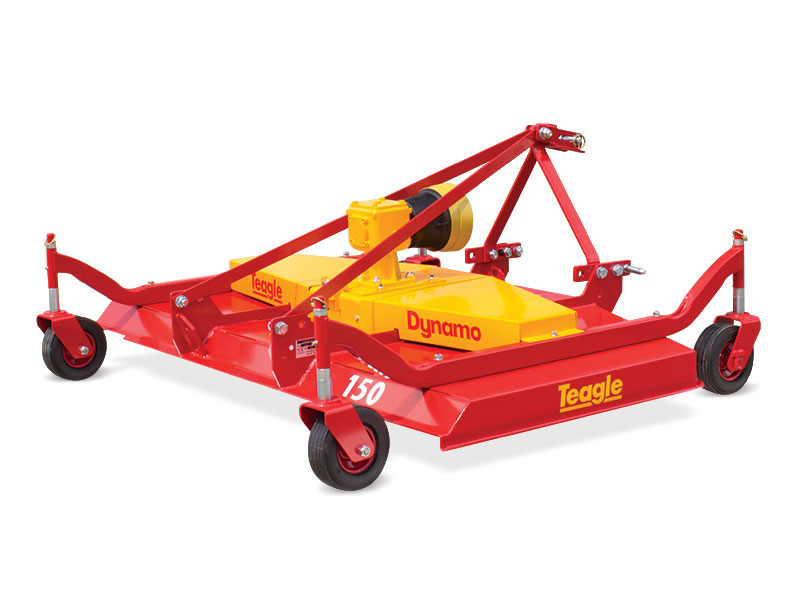

The Dynamo 150 & 180

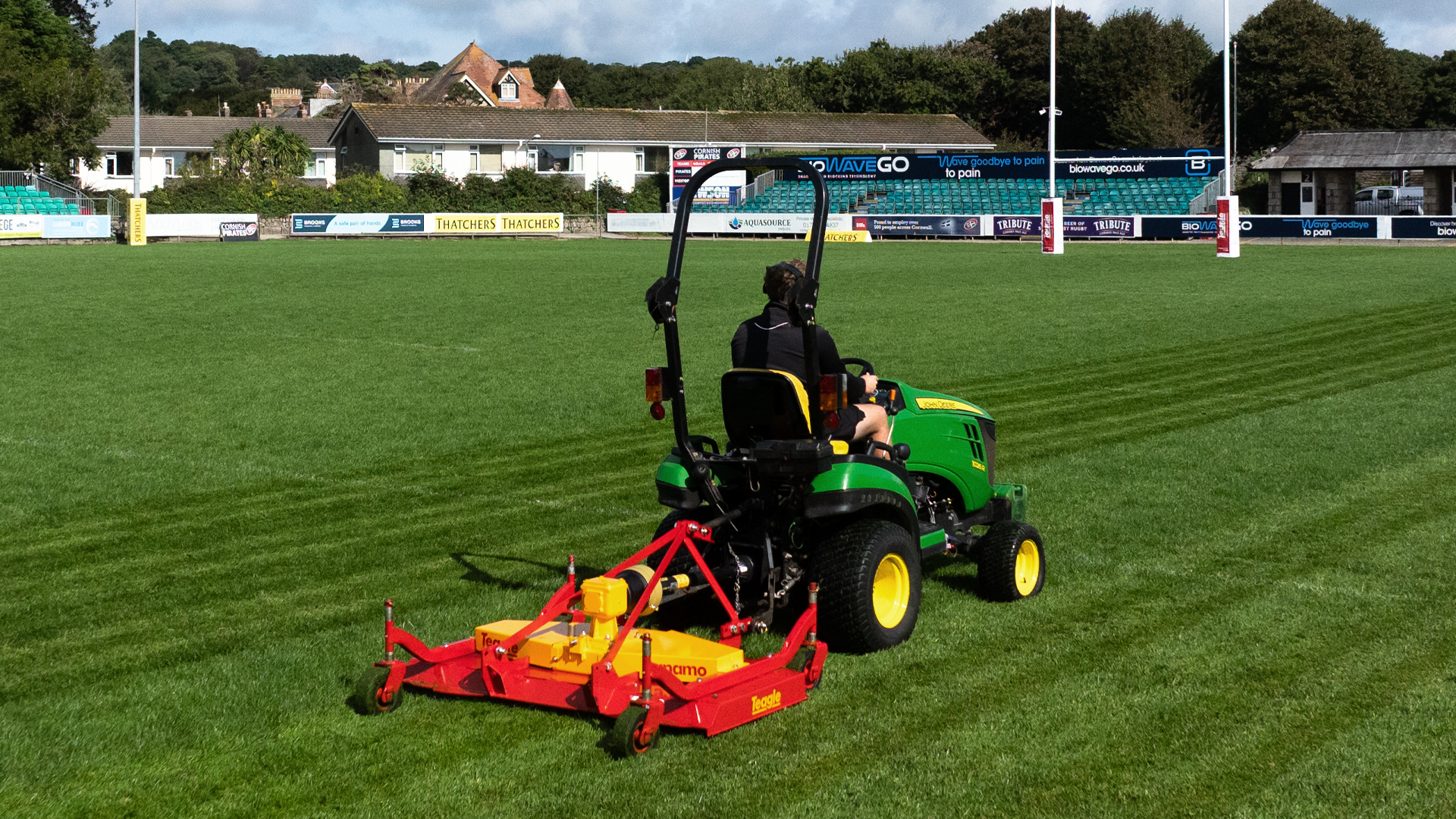

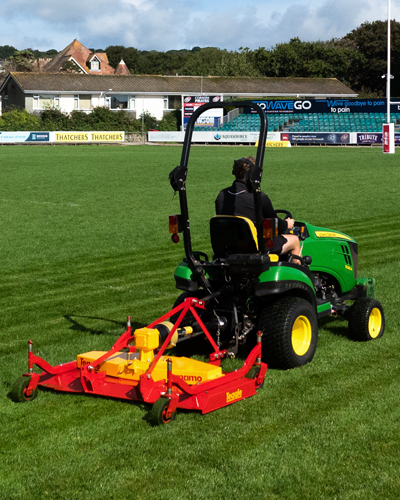

Suitable for Parks, Golf Courses, Sports Pitches, Playing Fields, Leisure Areas and Amenity applications.

Key Benefits:

  • The Cutting Edge
    Hardened spring steel blades rotate on hardened bushes

  • Driveline Protection
    Features shear bolts on the PTO with either belt drive transmission or flexible drive couplings.

  • Full Width Coverage
    Twin rotor models have offset rotors to ensure blade overlap.

Explore the Dynamo 150 & 180

150
180
Dynamo 150 & 180 150
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

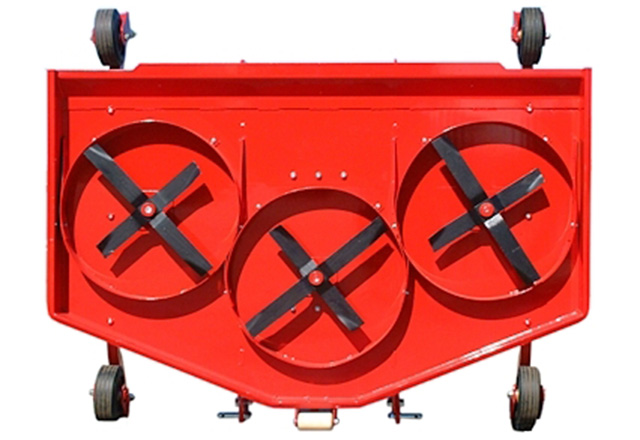

OPTION : Mulching Kit
OPTION : Mulching Kit
OPTION : Mulching Kit

The kit comprises of additional special mulching blades mounted on hardened bushes to produce extra chopping and even spreading. Dynamo 8 only.

OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft

An Overrun PTO shaft is recommended when the machine is fitted to a tractor with either a braked or 'non-live' PTO.

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

OPTION : Mulching Kit
OPTION : Mulching Kit
OPTION : Mulching Kit

The kit comprises of additional special mulching blades mounted on hardened bushes to produce extra chopping and even spreading. Dynamo 8 only.

OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft

An Overrun PTO shaft is recommended when the machine is fitted to a tractor with either a braked or 'non-live' PTO.

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

150
180
Dynamo 150 & 180 180
British Built
British Built
British Built

Built in Britain. Making an impression worldwide!

OPTION : Mulching Kit
OPTION : Mulching Kit
OPTION : Mulching Kit

The kit comprises of additional special mulching blades mounted on hardened bushes to produce extra chopping and even spreading. Dynamo 8 only.

OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft
OPTION : Overrun PTO shaft

An Overrun PTO shaft is recommended when the machine is fitted to a tractor with either a braked or 'non-live' PTO.

A superior finish
A superior finish
A superior finish

All Teagle products are now treated with a double powder coat paint finish; our latest upgrade in product quality and durability.

Watch a Topper being made

How the Topper is made

Spread Cut Material
A rotor divider and deflector deliver an even spread of cut material across the width of the mower.

Reduced Wheel Marks
Sliding offset comes as standard on Topper/Dynamo 6 & 8.

Height Control
Bolted adjustment for toppers and jacking screw for fine adjustment on roller mowers.

A Clean Cut
The smooth underside assists the flow of cut material through the machine.

Find your Local Dealer
Dynamo 180
Dynamo 180

Specifications

Download PDF
More
Description
Dynamo 150Dynamo 180
Cutting width
1.50m1.80m
Overall width1.59m1.91m
Power (min.)
15HP20HP
Rotors
33
MountingN/AN/A
Linkage
N/AN/A
PTO speed
540 rpm
540 rpm
DriveN/AN/A
Cutting height25-100mm25-100mm
Weight
189kg237kg
More

Grasscare Brochure

Teagle offers the widest range of reliable, high-performance Mowers & Toppers. Built to withstand tough conditions and deliver exceptional performance.

Download PDF
